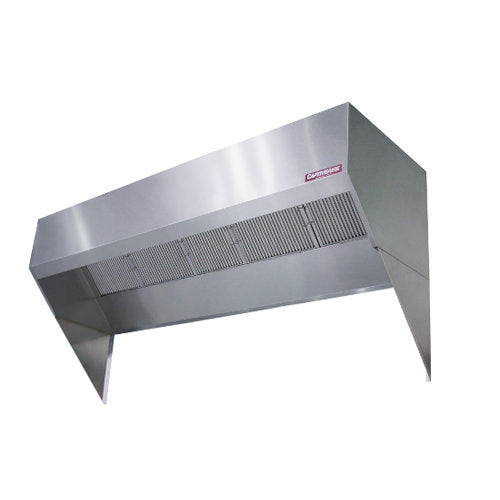

CaptiveAire BD2 Low Proximity Exhaust Hood

Features

• Construction: Made from type 430 stainless steel with #3 or #4 polish on all visible surfaces, with an optional type 304 stainless steel upgrade. Features fully welded and polished front corners, along with built-in air space to comply with NFPA 96 clearance regulations for limited combustible walls, plus optional insulation for combustible walls.
• Convenient Design: Includes UL listed, pre-wired incandescent light fixtures with tempered glass globes that accommodate a standard 100 watt bulb (not applicable for 24 or 26 inch models). Features pre-punched hanging angles on both ends and an additional set for hoods longer than 12 feet. Compact design optimizes kitchen space, with a minimum width of 24 inches.
• ETL Listed: Certified ETL for use over cooking surface temperatures of 450°F and 600°F, allowing for versatile kitchen ventilation system designs. Complies with US and Canadian safety standards, ETL sanitation listed, and built in accordance with NFPA 96.
• Exhaust Flow Rates: Exceptional exhaust flow performance ensures efficient removal of cooking odors and smoke.
• Grease Extraction: All units are equipped with stainless steel baffle filters and a deep grease trough for effortless cleaning. Optional filters include Captrate Combo® and Captrate Solo®. Features a grease drain system with a removable 1/2 pint cup for easy maintenance, and standard filter stops to eliminate gaps between filters.
• Capture and Containment: Innovative front design effectively channels grease-laden vapors towards the exhaust filter bank. For models 30 inches and wider, a double-wall insulated front enhances durability and minimizes condensation.
• Controls: Modular utility cabinets and end standoffs can be added to hoods. A built-in wiring chase is available for optimal placement of electrical controls and outlets on the front of the hood without interfering with the capture area, applicable for models 30 inches and larger.
• Reduced Lead Times and Shipping Costs: Manufactured on a high-volume assembly line across five facilities to minimize lead times and shipping expenses.
