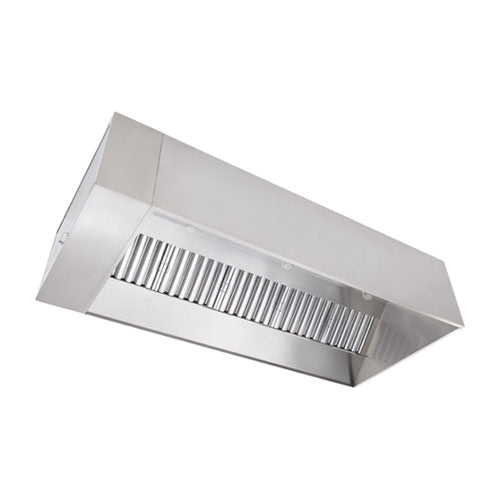

CaptiveAire ND-2 Exhaust Only Exhaust Hood

Features

• Exhaust Flow Rates: Exceptional exhaust flow capabilities, with a 4′ hood functioning at 150 CFM per foot, totaling 600 CFM. Available in both single and back-to-back setups.
• Construction: Made from polished type 430 stainless steel on the exterior and interior for a sleek look, with fully welded and polished front corners. An option for type 304 stainless steel is also available.
• Capture and Containment: Features a double-wall insulated front with an aerodynamic shape that minimizes radiant heat in the kitchen and prevents condensation. The signature ND-2 “mechanical baffle” enhances vapor capture and containment, while also accommodating electrical controls without compromising the capture area.
• Grease Extraction: Equipped with stainless steel baffle filters and a deep grease trough for easy maintenance. Optional Captrate Combo® and Captrate Solo® filters are available. Includes a grease drain system with a removable 1/2 pint cup for hassle-free cleaning. Standard filter stops prevent gaps between filters.
• Convenient Design: Factory-installed lighting illuminates the cooking area and is accessible from below the hood. Features UL listed, pre-wired incandescent fixtures with tempered glass globes suitable for standard 100-watt bulbs. Pre-punched hanging angles are included on each end, along with extra angles for hoods exceeding 12′ in length.
• ETL Listed: Certified for use over cooking surfaces with temperatures of 450°F, 600°F, and 700°F, offering flexibility in kitchen ventilation design. Complies with US and Canadian safety standards and sanitation regulations, and is constructed following NFPA 96 guidelines.
• Channels: The hood includes structural channels on the top and wrapper channels on the bottom for added support.
• Reduced Weight: Features rigid single wall end panels that help decrease overall weight.
• Clearance to Combustibles: Comes with a standard 3″ rear standoff to comply with NFPA 96 when installed against a wall.
• Reduced Lead Times and Shipping Costs: Manufactured on a high-volume assembly line across five facilities to streamline production and minimize shipping expenses.
• Controls: Can be fitted with modular utility cabinets and end standoffs. Optional light and fan control switches are flush-mounted and pre-wired through an electrical chase way.
