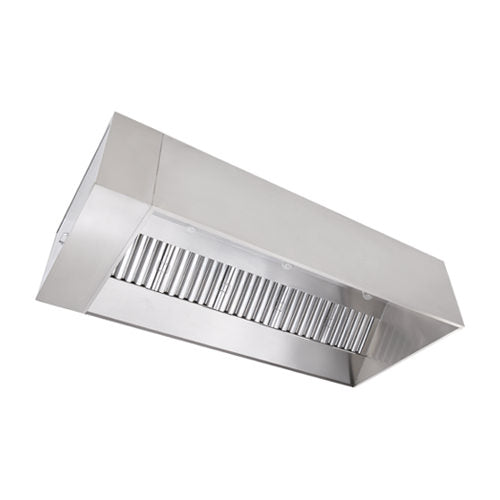

CaptiveAire SND-2 Exhaust Only Exhaust Hood

Features

• Capture and Containment: The insulated, double-wall rigid front features an aerodynamic design that minimizes radiant heat in the kitchen, prevents condensation, and offers excellent capture and containment of cooking vapors. The exclusive "mechanical baffle," available only on the 18" front model, includes a built-in wiring chase for optimal placement of electrical controls and outlets without compromising the capture area.
• Construction: Crafted from type 430 stainless steel, with an option for type 304, the polished stainless steel enhances the visual appeal on both the interior and exterior fronts. The fully welded and polished corners, along with a sloped front design, accommodate low ceiling installations.
• Convenient Design: The hood comes with factory pre-wired lighting that illuminates the cooking area, accessible from beneath. It includes UL listed, pre-wired incandescent light fixtures and tempered glass globes suitable for a standard 100-watt bulb. Pre-punched hanging angles are provided on both ends, plus an additional set for hoods exceeding 12'.
• Grease Extraction: Each hood is equipped with stainless steel baffle filters and a deep grease trough for convenient cleaning. Optional Captrate Combo® and Captrate Solo® filters are available, and a grease drain system includes a removable 1/2 pint cup for easy maintenance. Standard filter stops prevent gaps between filters.
• Exhaust Flow Rates: Exceptional exhaust flow rates enhance kitchen ventilation effectiveness.
• ETL Listed: The product is ETL listed for safety and can handle cooking surface temperatures of 400°F and 600°F, allowing for versatile kitchen ventilation designs. It complies with US and Canadian safety standards, is ETL sanitation listed, and constructed in line with NFPA 96.
• Controls: The hoods can be outfitted with modular utility cabinets and end standoffs. Optional light and fan control switches are available, flush mounted and pre-wired through an electrical chase.
• Reduced Lead Times and Shipping Costs: These hoods are manufactured on a high-volume assembly line in one of five facilities, leading to decreased lead times and shipping expenses.
• Reduced Weight: The use of rigid single-wall end panels contributes to a lighter overall design.
• Optional Make-Up Air: Optional front and/or side plenums can supply make-up air (available with ND-2 Series using PSP or AC-PSP Accessory).
